Biological Computing Blueprint

The 5-Layer Brain-Inspired Architecture

ImpressionCore models human and biological cognition through a structured five-layer hierarchy: moving from sensory perception to associative cognition, planetary memory orreries, hemispheric executive control, and embodied motor output.

ImpressionCore 5-Layer Brain-Inspired Architecture Diagram

The Canonical Five-Layer Multimodal Stack: Sensory Cortex → Cognitive Core → Memory Orrery → Brain-Triad → Motor Cortex FIGURE 1.0 • SYSTEM TOPOLOGY

Layer Specifications

Deconstructing the Cognitive Hierarchy

Layer 1: Input Plane

Sensory Cortex (Input Processing)

Perceives the external physical and semantic world through specialized modality-specific tokenizers and neural encoders:

Text Processing: Byte-Pair Encoding (BPE) with custom vocabulary (50,257 tokens).
Vision Processing: Vision Transformer (ViT-B/32) and CNN patch tokenizers for continuous visual grids.
Acoustic Processing: Wav2Vec2 and Mel-spectrogram temporal audio feature extraction.
3D Spatial Depth: Real-time RGB-D point clouds and skeletal joint tracking via Microsoft Kinect.

Layer 2: Association Plane

Cognitive Core (Association Cortex)

Performs cross-modal latent projection and sparse expert routing to bind disparate sensory streams into unified concepts:

Cross-Modal Latent Projections: Cross-Attention matrices projecting vision and audio into text token spaces.
Multi-Head Latent Attention (MLA): Low-rank key-value projections saving 75% memory bandwidth.
Assembly of Experts (AoE): 4 specialized sub-networks dynamically gated by task complexity.

Layer 3: Memory Plane

Memory Systems (Hippocampus & Orrery)

Combines short-term working context with long-term episodic recall and cosmic associative knowledge graphs:

Short-Term Working Buffer: Sliding-window attention cache for immediate conversational context.
Long-Term Vector Store: Persistent FAISS / SQLite vector databases for episodic personal recall.
Dynamic Memory Orrery: 3D celestial knowledge graph mapping semantic distance vectors.

Layer 4: Executive Plane

Executive Control (Brain-Triad / PFC)

Arbitrates reasoning through dual hemispheric generation overseen by constitutional alignment:

Analytical Left Hemisphere: Low-entropy deterministic logic ($T=0.1$) for code, math, and syntax.
Creative Right Hemisphere: Expansive associative synthesis ($T=0.8$) for metaphor, emotion, and creativity.
Colossus Central Arbiter: Confidence-weighted fusion validating compliance with Kirk LaSalle's 10 Laws.

Layer 5: Output Plane

Motor Cortex & Sovereign Digital Twin

Transforms unified cognitive states into real-world embodied outputs: autoregressive text tokens, high-fidelity neural speech synthesis with emotional prosody, and real-time 3D avatar animations ("Impressions") of humans, plants, animals, and geological formations.

Cognitive Orchestration

The Hemispheric Brain-Triad Architecture

Rather than relying on single-temperature stochastic generation, ImpressionCore partitions cognition into specialized hemispheres arbitrated by the Colossus Integrator.

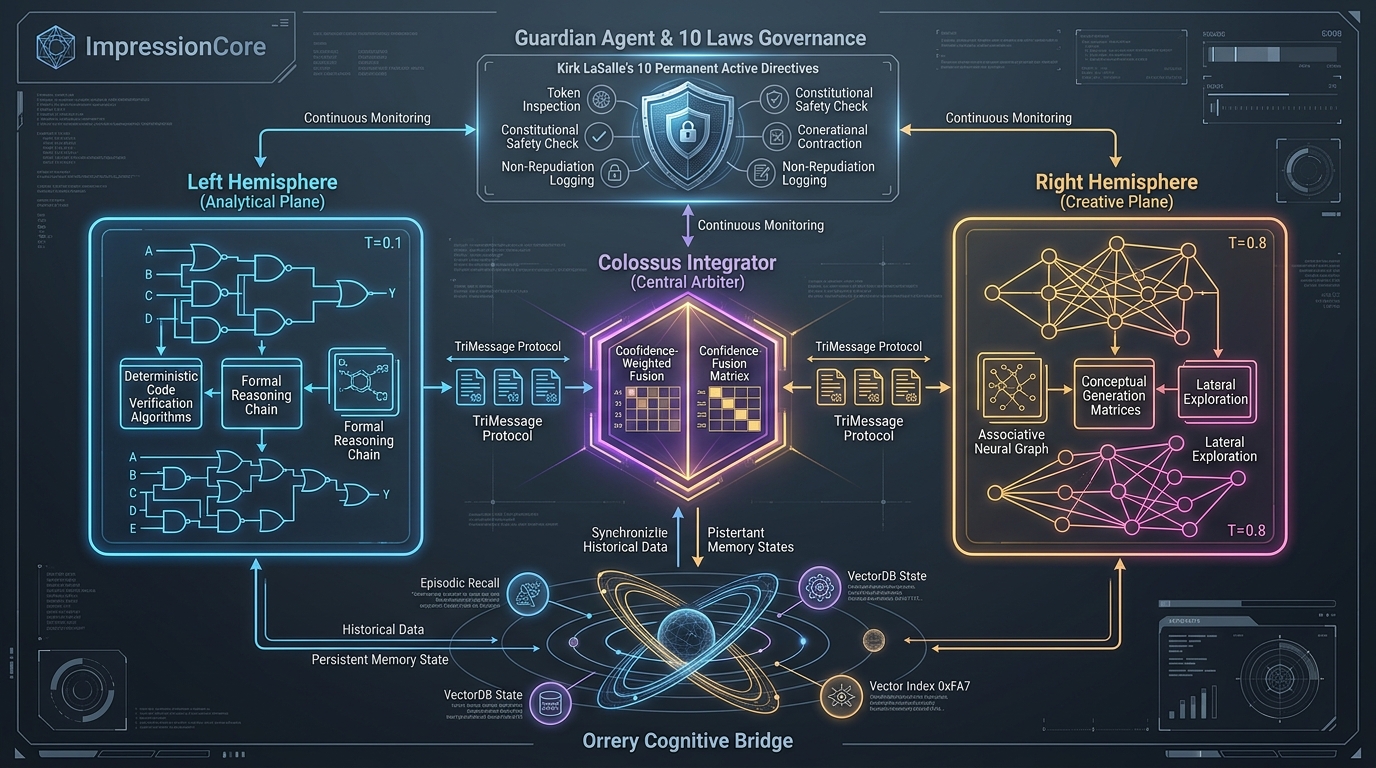

ImpressionCore Brain-Triad Cognitive Orchestration Diagram

TriMessage Protocol: Analytical Left ($T=0.1$) + Creative Right ($T=0.8$) → Colossus Arbiter (Confidence-Weighted Fusion) FIGURE 2.0 • TRIAD ORCHESTRATION

🧠 Analytical Left Hemisphere

Temperature: $T = 0.1$

Operates in a near-zero entropy state. Responsible for formal logical deduction, code synthesis, mathematical validation, and grammatical verification. Guarantees factual reproducibility.

🎨 Creative Right Hemisphere

Temperature: $T = 0.8$

Operates in an expansive associative state. Responsible for lateral thinking, empathetic prosody, novel hypothesis generation, and semantic exploration across disparate knowledge domains.

⚖️ Colossus Central Arbiter

Protocol: TriMessage Consensus

Evaluates both hemispheric candidate vectors through a confidence matrix, verifies compliance with the 10 Laws via the Guardian agent, and issues a unified, non-repudiated response.

Attention Innovations

Multi-Head Latent Attention (MLA) & Low-VRAM Math

How ImpressionCore achieves massive context lengths on a 4GB graphics card by compressing KV cache tensors into low-rank latent representations.

Multi-Head Latent Attention MLA Architecture

Multi-Head Latent Attention: Low-Rank Key-Value Projections with Decoupled Rotary Position Embedding FIGURE 3.0 • MLA MECHANICS

The KV Cache Bandwidth Problem

In standard Multi-Head Attention (MHA), storing Key-Value tensors for long context windows ($T=4096$) requires gigabytes of memory, causing instant out-of-memory (OOM) failures on 4GB consumer cards.

The ImpressionCore MLA Solution

MLA projects keys and values into a shared compressed latent vector $c_t^{KV} \in \mathbb{R}^{d_c}$ where $d_c \ll n_{heads} \cdot d_{head}$.

c_t^{KV} = W^{DKV} h_t \quad \text{(Low-Rank Latent Compression)}
k_t^{C} = W^{UK} c_t^{KV}, \quad v_t = W^{UV} c_t^{KV}
k_t = [k_t^{C}, \text{RoPE}(W^{KR} h_t)] \quad \text{(Decoupled RoPE)}

✅ Result: 75% reduction in KV cache memory bandwidth with zero loss in linguistic fidelity.

Sparse Scaling

Assembly of Experts (AoE) Subsystem

Specialized neural modularity: scaling parameter capacity without multiplying runtime compute cost.

Expert 0: Logical

Specialized feed-forward network optimized for formal logic, algorithmic problem-solving, and deterministic execution.

Expert 1: Creative

Trained on rich metaphor, creative writing, conceptual analogies, and intuitive linguistic extrapolation.

Expert 2: Empathy

Specialized in emotional prosody, conversational nuances, supportive dialogue, and interpersonal alignment.

Expert 3: Analytic

Structured data extraction, numerical computation, code parsing, and factual cross-referencing.

src/core/models/b3_foundation.py — Assembly of Experts Router PyTorch Architecture

class MixtureOfExpertsRouter(nn.Module): def __init__(self, config: B3FoundationConfig): super().__init__() self.gate = nn.Linear(config.d_model, config.num_experts, bias=False) self.top_k = config.num_active_experts # Top-2 routing def forward(self, x: torch.Tensor) -> Tuple[torch.Tensor, torch.Tensor, torch.Tensor]: logits = self.gate(x) weights, indices = torch.topk(F.softmax(logits, dim=-1), self.top_k, dim=-1) weights = weights / weights.sum(dim=-1, keepdim=True) # Normalize top-k return weights, indices, self.compute_auxiliary_loss(logits)
